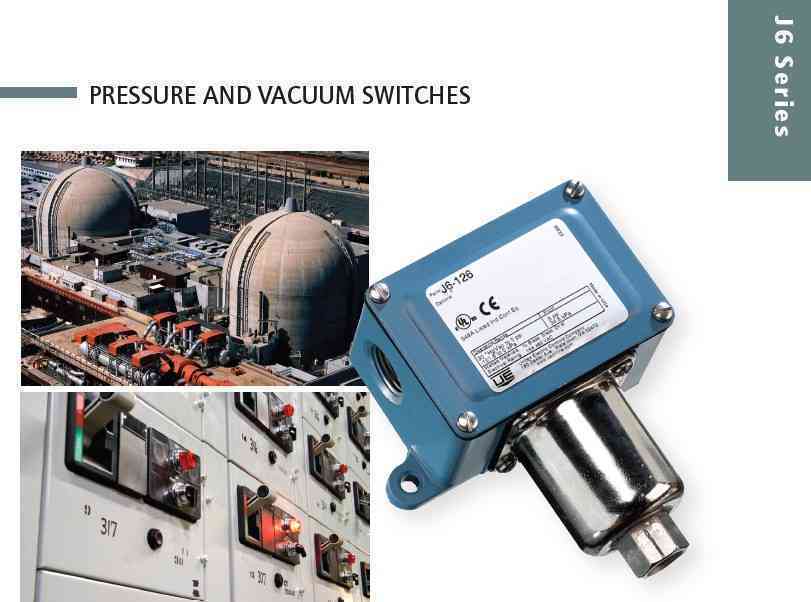

UE Controls J6 Series Pressure Switches Model S126B-S164B

https://www.doger.com/web/image/product.template/10549/image_1920?unique=c927762

The J6 is a reliable, sensitive pressure switch, originally designed for instrument air applications in process plants.

Brass bellows with nickel-plated brass 1/4” NPT (female) pressure connection†; Models 126 and 134 have zinc-plated steel spring exposed to media

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.

Specifications for UE Controls J6 Series Pressure Switches Model S126B-S164B

Pressure parameters . S148B -Set Point Range: 0 to 18 psi /Deadband: 4 to 7 ”wc /Over Range Pressure: 18 psi / Proof pressure: 25 psi or S148B -Set Point Range: 0 to 40 psi /Deadband: 0.1 to 0.4 psi /Over Range Pressure: 40 psi / Proof pressure: 40 psi or S152B -Set Point Range: 0 to 50 psi /Deadband: 0.1 to 0.5 psi /Over Range Pressure: 50 psi / Proof pressure: 75 psi or S156B -Set Point Range: 3 to 100 psi /Deadband: 0.2 to 0.8 psi /Over Range Pressure: 100 psi / Proof pressure: 125 psi or S160B -Set Point Range: 50 to 180 psi /Deadband: 0.3 to 1 psi /Over Range Pressure: 180 psi / Proof pressure: 180 psi or S164B -Set Point Range: 0 to 200 psi /Deadband: 0.3 to 2 psi /Over Range Pressure: 200 psi / Proof pressure: 200 psi or S126B -Set Point Range: 30 ”Hg Vac to 0 psi /Deadband: 0.2 to 0.8 ”Hg /Over Range Pressure: 3 psi / Proof pressure: 5 psi or S134B -Set Point Range: 30 ”Hg Vac to 20 psi /Deadband: 0.2 to 0.8 ”Hg /Over Range Pressure: 20 psi / Proof pressure: 25 psi or S136B -Set Point Range: 0 to 50” wc /Deadband: 3 to 6 ”wc /Over Range Pressure: 50 “wc / Proof pressure: 5 psi
UEONLINE J6 Series Installation and Maintenance Manual.pdf
Download
UEONLINE J6 Series.pdf
Download
  • UL listed and cUL certified
  • Optional ATEX or GOST intrinsic safety compliance
  • Designed to meet Enclosure Type 4X
  • SPDT switch output
  • Adjustable deadband option for precise on-off control
  • Brass or welded stainless steel bellows sensors
  • External manual reset option


  • Ambient:  TEMPE 40° to 160°F (-40 to 71°C); set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change.
  • Set point repeatability: Models S126B-S164B, 126-364, 680: ± 1% of adjustable range; models 610-614: ± 1.5% of adjustable range.
  • Shock: Set point repeats after 15 G, 10 millisecond duration.
  • Vibration: Set point repeats after 2.5 G, 5-500 Hz
  • Enclosure: Die cast aluminum, epoxy powder coated, gasketed; captive cover screws.
  • Enclosure classification: Designed to meet Enclosure Type 4X requirements.
  • Switch output: One SPDT; switch may be wired “normally open” or “normally closed".
  • Electrical rating: 15 A 125/250/480 VAC resistive. Electrical switches have limited DC capabilities. Consult factory for additional information.
  • Weight: Approx. 1 lb., 8 oz. (0.68 kg.)
  • Electrical connection: 1/2” NPT (female).
  • Pressure connection: All models 1/4” NPT (female) except models S126B-S164B: 1/2” NPT (female).
  • See also the parameters of the equipment.


UE declarations and third-party issued Agency certifications are available for download at www.ueonline.com/prod_approval.

United States and Canada:

  • UL Listed,
  •  UL 508, file #E42272
  •  UL Certified CSA C22.2 No. 14, file #42272
  • Canadian Registration Number (CRN): Refer to www.ueonline.com/certifications for list of approved models

 European Union

  • ATEX Directive (94/9/EC)
  •  II 1 G EEx ia IIC T6 (Optional - Code M405)
  • Tamb = -50°C to +60°C
  •  UL International DEMKO A/S (N.B.# 0539)
  •  Certificate #DEMKO 03 ATEX 0335063 EN 50014, 50020 & 50284

 Low Voltage Directive (LVD) (73/23/EC & 93/68/EEC)

  •  Compliant to LVD
  •  Products rated lower than 50 VAC and 75 VDC are outside of the scope of the LVD
  •  The Low Voltage Directive does not apply to products for use in hazardous locations

 Pressure Equipment Directive (PED) (97/23/EC)

  • Compliant to PED Products rated below 7.5 psi are outside the scope of PED

Russia

  • Gosgortechnadzor Permit (OPTIONAL - Code M406)
  •  OExia IIC T6
  •  Tamb. = -50°C to +60°C
  • NANIO CCVE Certification Center
  • Certificate ROSS US.GB05.Bo2933
  • GOST R 51330.0, 51330.1, 51330.10 & 51330.14
