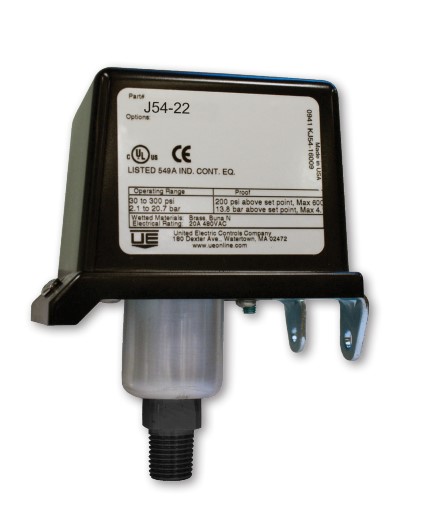

UE Controls 54 Series Pressure switches (H54 Models 126-164)

https://www.doger.com/web/image/product.template/10683/image_1920?unique=7e8b428

H54: NEMA 1 enclosure; One SPDT output; internal adjustment with reference dial

Buna N diaphragm and O-Ring with 1/4” NPT (male) aluminum pressure connection; limited to process temperature below 200°F.

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

OEMs can choose from standard models with a variety of options or work with our application engineers to custom design a product solution.
Typical applications that utilize the 54 Series include medical and laboratory equipment, precision cutting machinery, fire protection, mobile hydraulic units, and heating equipment.

Parameters available in the datasheet of the documents section


Specifications for UE Controls 54 Series Pressure switches (H54 Models 126-164)

Pressure parameters . 126 -Set Point Range: 30” Hg Vac to 0 psi /Deadband: 0.2 to 0.9” Hg /Over Range Pressure: 3 psi / Proof pressure: 5 psi or 137 -Set Point Range: 0 to 80 “wc /Deadband: 1 to 8 “wc /Over Range Pressure: 3 psi / Proof pressure: 5 psi or 144 -Set Point Range: 0 to 20 psi /Deadband: 0.1 to 0.5 psi /Over Range Pressure: 20 psi / Proof pressure: 25 psi or 146 -Set Point Range: 0 to 30 psi /Deadband: 0.1 to 0.6 psi /Over Range Pressure: 30 psi / Proof pressure: 40 psi or 152 -Set Point Range: 0 to 50 psi /Deadband: 0.1 to 0.7 psi /Over Range Pressure: 50 psi / Proof pressure: 75 psi or 156 -Set Point Range: 0 to 100 psi /Deadband: 0.2 to 0.8 psi /Over Range Pressure: 100 psi / Proof pressure: 125 psi or 164 -Set Point Range: 0 to 200 psi /Deadband: 0.3 to 2 psi /Over Range Pressure: 200 psi / Proof pressure: 200 psi
UEONLINE 54 Series Datasheet_compressed.pdf
Download
  • Compact size
  •  Choice of one or two switch outputs
  •  Reference dial or hex screw-type setting
  • Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
  • Optional external manual reset
  •  NEMA 1 or open frame (skeleton) versions for OEM applications
  •  Brass bellows models




Product Image
UE Controls 54 Series Pressure switches (H54 Models 126-164)
