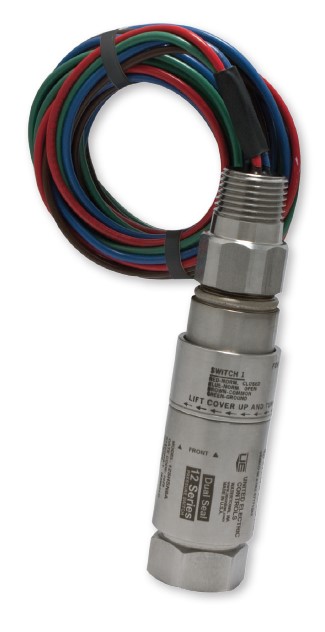

UE Controls 12 Series temperature switches Sensor Type L1-L2

https://www.doger.com/web/image/product.template/10677/image_1920?unique=267f786

Sensor Type L, 316 Stainless steel immersion stem 1/2" NPT (male). Non-Belleville actuation

12 Series hazardous location switches are ideal for operation in tough applications where space is at a premium.

  • 12 Series Electrical Rating
  • 12 Series Switch Output
  • 12 Series Electrical Conduit
  • 12 Series Sensor type
  • Temperature parameters

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

A snap-action Belleville spring assembly is used in most models to provide
vibration resistance and prolonged switch life. The 316 stainless steel enclosure and hermetically sealed switch provide rugged protection from the environment. Approved for use in hazardous locations worldwide, the 12 Series is installed within applications ranging from offshore oil rigs to rotating equipment, and more

Specifications for UE Controls 12 Series temperature switches Sensor Type L1-L2

12 Series Electrical Rating L: 1 amp or H: 5 amp
12 Series Electrical Conduit N: 1/2” NPT, male or M: M20 metric thread, male
Temperature parameters TYPE L1 -Set Point Range: 0 to 225 °F / Max. Temperature: 275 °F/ Stem or Bulb Size: 9/16" x 1-25/32" below thread or TYPE L2 -Set Point Range: 200 to 425 °F / Max. Temperature: 475 °F/ Stem or Bulb Size: 9/16" x 1-25/32" below thread
12 Series Switch Output S: SPDT
12 Series Sensor type L: 316L stainless steel immersion stem
UEONLINE J12 Series Datasheet-comprimido.pdf
Download
  • UL, cUL, ATEX and IECEx approved for Div. 1 or Zone1 hazardous locations; CE Compliant
  • Dual seal compliant to ANSI/ISA 12.27.01 & NEC 501.17
  • Many models compliant to NACE MR0175.
  • Snap-acting Belleville spring for long life, vibration resistance and stability
  • Optional Hastelloy* and Monel* sensor material for corrosive media
  • Mounting bracket available for retrofit applications
  •  72" leadwires
  • 3-year warranty

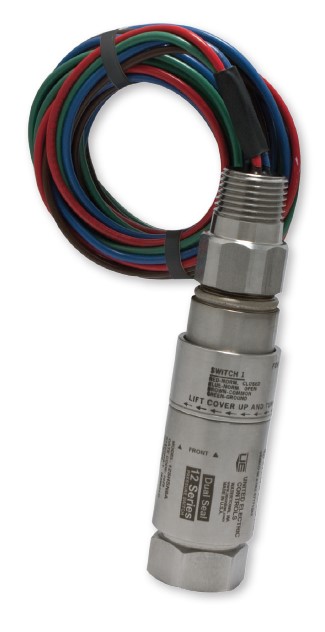

Product Image
