54 series Temperature switches (F54 Models D20BS-D23BS )

https://www.doger.com/web/image/product.template/10712/image_1920?unique=855b8ea

F54: NEMA 1 enclosure; Bulb and capillary; one SPDT output; internal hex adjustment with no reference dial

Stainless steel bulb and capillary

  • Temperature parameters

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

OEMs can choose from standard models with a variety of options or work with our application engineers to custom design a product solution.
Typical applications that utilize the 54 Series include medical and laboratory equipment, precision cutting machinery, fire protection, mobile hydraulic units, and heating equipment.

Parameters available in the datasheet of the documents section


Specifications for 54 series Temperature switches (F54 Models D20BS-D23BS )

Temperature parameters D20BS - Set Point Range: -130 to 120 °F /Max. Temperature: 170 °F /Scale Division: 10 °F / Stem Size: 3/8 x 4-3/4 or D21BS - Set Point Range: 0 to 150 °F /Max. Temperature: 200 °F /Scale Division: 5 °F / Stem Size: 3/8 x 7-1/4 or D22BS - Set Point Range: 50 to 300 °F /Max. Temperature: 350 °F /Scale Division: 10 °F / Stem Size: 3/8 x 4-3/4 or D23BS - Set Point Range: 150 to 650°F /Max. Temperature: 700 °F /Scale Division: 25 °F / Stem Size: 3/8 x 4
UEONLINE 54 Series Datasheet_compressed.pdf
Download
  • Compact size
  •  Choice of one or two switch outputs
  •  Reference dial or hex screw-type setting
  • Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
  • Optional external manual reset
  •  NEMA 1 or open frame (skeleton) versions for OEM applications
  •  Brass bellows models


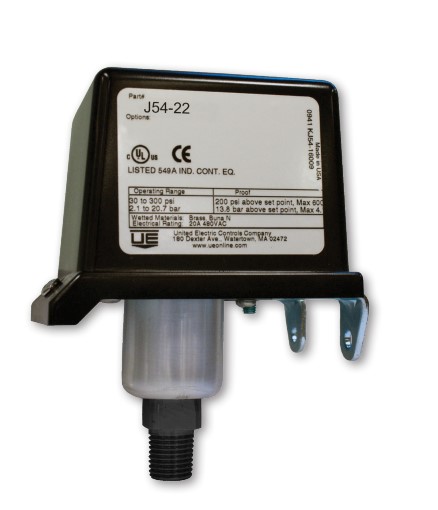

Product Image
54 series Temperature switches (F54 Models D20BS-D23BS )
