54 series Temperature switches (C54S Models 103-109)

https://www.doger.com/web/image/product.template/10705/image_1920?unique=f227684

C54S: Skeleton construction; Immersion stem; one SPDT output; hex adjustment with no reference dial.

Brass immersion stem

  • Temperature parameters

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

OEMs can choose from standard models with a variety of options or work with our application engineers to custom design a product solution.
Typical applications that utilize the 54 Series include medical and laboratory equipment, precision cutting machinery, fire protection, mobile hydraulic units, and heating equipment.

Parameters available in the datasheet of the documents section


Specifications for 54 series Temperature switches (C54S Models 103-109)

Temperature parameters 103 - Set Point Range: 0 to 225 °F /Max. Temperature: 250 °F /Scale Division: 10 °F / Stem Size: 3/8 x 2-1/8 or 109 - Set Point Range: 200 to 425 °F /Max. Temperature: 425 °F /Scale Division: 10 °F / Stem Size: 3/8 x 2-1/8

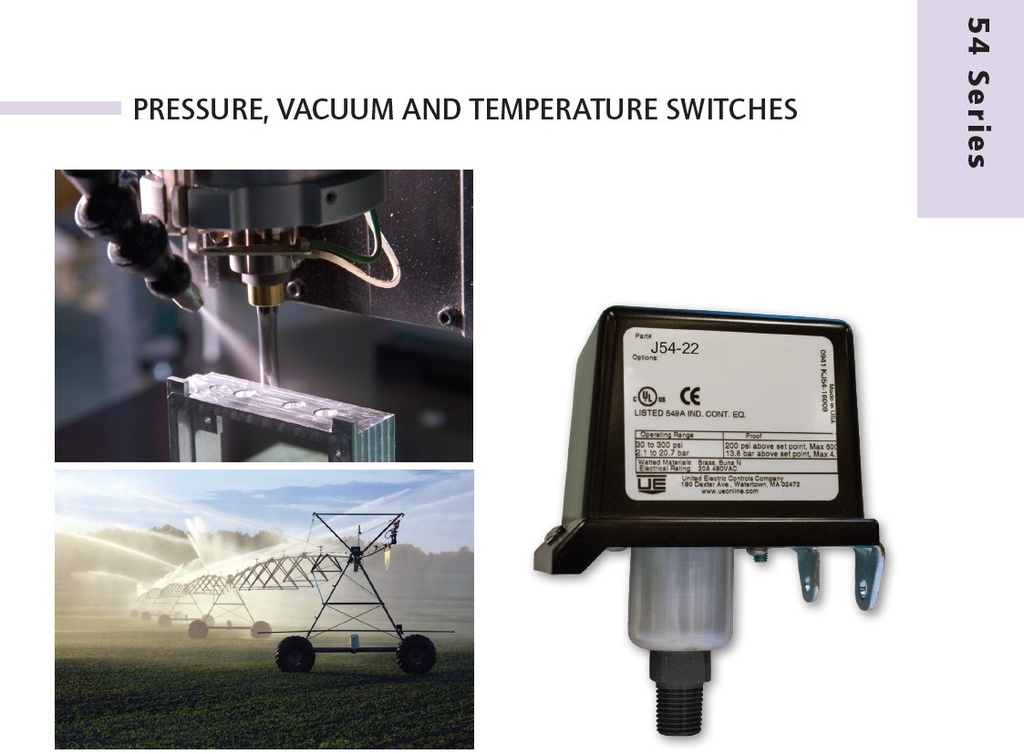

UEONLINE 54 Series Datasheet_compressed.pdf
Download
  • Compact size
  •  Choice of one or two switch outputs
  •  Reference dial or hex screw-type setting
  • Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
  • Optional external manual reset
  •  NEMA 1 or open frame (skeleton) versions for OEM applications
  •  Brass bellows models
