  2. 100 Series Temperature Switch Type E100 Copper sensor

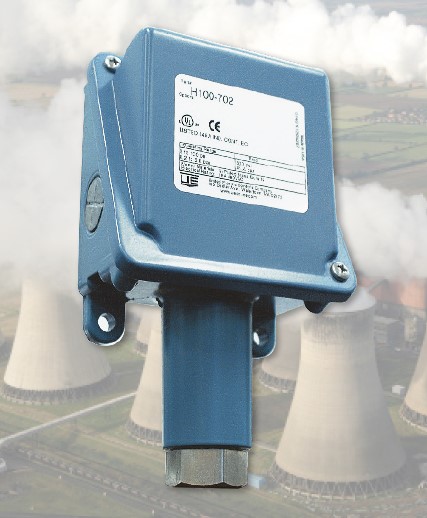

100 Series Temperature Switch Type E100 Copper sensor

https://www.doger.com/web/image/product.template/10741/image_1920?unique=2c70c31

The 100 Series is simple to install and operate for alarm, safety and emergency shutdown applications where preserving process uptime, and protecting personnel and equipment are paramount.

Type E100 - Bulb and capillary; one SPDT output; internal adjustment with reference dial

Note:
To view optional products click ADD TO CAR.

  • Temperature parameters

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

A rugged switch, the 100 Series is ideal for both heavy industry and the OEM, and carries global agency certification. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns.
Typical applications that utilize the 100 Series include controlling rotating equipment – pumps, turbines, and compressors, heat tracing, fire suppression systems, and fuel/gas trains.

Parameters available in the datasheet of the documents section

Specifications for 100 Series Temperature Switch Type E100 Copper sensor

Temperature parameters 2BCA - Set Point Range: -120 to 100 °F /Max. Temp: 150 °F / Scale Division : 10 °F /Stem size : 3/8 x 2-5/8" or 2BCB - Set Point Range: 30 to 250 °F /Max. Temp: 300 °F / Scale Division : 10 °F /Stem size : 3/8 x 2-5/8" or 3BC - Set Point Range: 100 to 400 °F /Max. Temp: 450 °F / Scale Division : 10 °F /Stem size : 3/8 x 2-1/8" or 4BC - Set Point Range: 25 to 100 °F /Max. Temp: 150 °F / Scale Division : 2 °F /Stem size : 3/8 x 6-3/4" or 5BC - Set Point Range: --20 to 80 °F /Max. Temp: 130 °F / Scale Division : 5 °F /Stem size : 3/8 x 5" or 8BC - Set Point Range: 350 to 640 °F /Max. Temp: 690 °F / Scale Division : 10 °F /Stem size : 3/8 x 3-1/4"
UEONLINE 100 Series Datasheet.pdf
Download
  • SIL 2 certified (SIL 3 capable) switch providing reliable local switching of final elements in safety instrumented systems (SIS)
  • Quick and easy installation with ample access to wiring compartment and simple set point adjustment using reference dial or scale, and calibrated gauge
  • Application versatility achieved through a variety of ranges, microswitches, sensors and process connections
  • Protect piping and vessels with heat trace/freeze protection temperature models


Product Image
100 Series Temperature Switch Type E100 Copper sensor
