100 Series Pressure Switch H100 models (up to 500 psi)

https://www.doger.com/web/image/product.template/10733/image_1920?unique=a99b363

The 100 Series is simple to install and operate for alarm, safety and emergency shutdown applications where preserving process uptime, and protecting personnel and equipment are paramount.

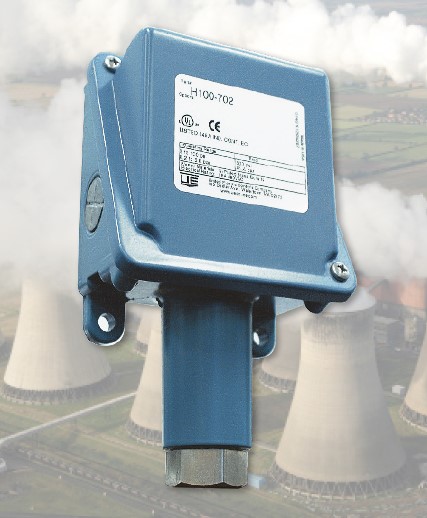

Type H100 - One SPDT output; epoxy coated enclosure; internal adjustment with “High-Low” reference scale

Note:
You can view the optional products available by clicking ADD TO CAR.

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

A rugged switch, the 100 Series is ideal for both heavy industry and the OEM, and carries global agency certification. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns.
Typical applications that utilize the 100 Series include controlling rotating equipment – pumps, turbines, and compressors, heat tracing, fire suppression systems, and fuel/gas trains.

Parameters available in the datasheet of the documents section

Specifications for 100 Series Pressure Switch H100 models (up to 500 psi)

Pressure parameters . 186 - Set Point Range: 8 to 200 psi /Deadband: 0.3 to 3 psi /Over Range Pressure : 500 psi or 486 - Set Point Range: 8 to 200 psi /Deadband: 0.3 to 3 psi /Over Range Pressure : 500 psi or 174 - Set Point Range: 8 to 200 psi /Deadband: 0.1 to 3.5 psi /Over Range Pressure : 500 psi or 270 - Set Point Range: 4 to 200 psi /Deadband: 1 to 8 psi /Over Range Pressure : 200 psi or 358 - Set Point Range: 15 to 200 psi /Deadband: 1 to 6 psi /Over Range Pressure : 200 psi or 15623 - Set Point Range: 20 to 200 psi /Deadband: 12 to 26 psi /Over Range Pressure : 500 psi or 703 - Set Point Range: 9 to 300 psi /Deadband: 1 to 5 psi /Over Range Pressure : 500 psi or 15733 - Set Point Range: 9 to 300 psi /Deadband: 4 to 16 psi /Over Range Pressure : 500 psi or 192 - Set Point Range: 15 to 300 psi /Deadband: 3 to 18 psi /Over Range Pressure : 1500 psi or 492 - Set Point Range: 15 to 300 psi /Deadband: 3 to 18 psi /Over Range Pressure : 1500 psi or 361 - Set Point Range: 20 to 300 psi /Deadband: 1 to 7 psi /Over Range Pressure : 200 psi or 567 - Set Point Range: 15 to 300 psi /Deadband: 3 to 22 psi /Over Range Pressure : 1000 psi or 704 - Set Point Range: 15 to 500 psi /Deadband: 2 to 8 psi /Over Range Pressure : 1500 psi or 15734 - Set Point Range: 15 to 500 psi /Deadband: 8 to 31 psi /Over Range Pressure : 1500 psi or 193 - Set Point Range: 20 to 500 psi /Deadband: 4 to 30 psi /Over Range Pressure : 1500 psi or 493 - Set Point Range: 20 to 500 psi /Deadband: 4 to 30 psi /Over Range Pressure : 1500 psi or 274 - Set Point Range: 6 to 300 psi /Deadband: 1 to 10 psi /Over Range Pressure : 300 psi or 376 - Set Point Range: 25 to 500 psi /Deadband: 1.5 to 8 psi /Over Range Pressure : 200 psi or 705 - Set Point Range: 30 to 1000 psi /Deadband: 3 to 20 psi /Over Range Pressure : 1500 psi or 15735 - Set Point Range: 30 to 1000 psi /Deadband: 9 to 90 psi /Over Range Pressure : 1500 psi or 188 - Set Point Range: 50 to 1000 psi /Deadband: 25 to 125 psi /Over Range Pressure : 2000 psi or 488 - Set Point Range: 50 to 1000 psi /Deadband: 25 to 125 psi /Over Range Pressure : 2000 psi or 610 - Set Point Range: 75 to 1000 psi /Deadband: 30 to 150 psi /Over Range Pressure : 6000 psi or 706 - Set Point Range: 100 to 1700 psi /Deadband: 10 to 30 psi /Over Range Pressure : 2000 psi or 15736 - Set Point Range: 100 to 1700 psi /Deadband: 25 to 100 psi /Over Range Pressure : 200 psi or 194 - Set Point Range: 80 to 1700 psi /Deadband: 5 to 120 psi /Over Range Pressure : 2000 psi or 494 - Set Point Range: 80 to 1700 psi /Deadband: 5 to 120 psi /Over Range Pressure : 2000 psi or 680 - Set Point Range: 100 to 1700 psi /Deadband: 9 to 40 psi /Over Range Pressure : 1700 psi or 612 - Set Point Range: 125 to 3000 psi /Deadband: 40 to 250 psi /Over Range Pressure : 6000 psi or 189 - Set Point Range: 250 to 3500 psi /Deadband: 50 to 300 psi /Over Range Pressure : 4000 psi or 489 - Set Point Range: 250 to 3500 psi /Deadband: 50 to 300 psi /Over Range Pressure : 4000 psi or 616 - Set Point Range: 700 to 5000 psi /Deadband: 40 to 375 psi /Over Range Pressure : 6000 psi or 15884 - Set Point Range: 700 to 5000 psi /Deadband: 80 to 500 psi /Over Range Pressure : 80 to 500 psi
UEONLINE 100 Series Datasheet.pdf
Download
  • SIL 2 certified (SIL 3 capable) switch providing reliable local switching of final elements in safety instrumented systems (SIS)
  • Quick and easy installation with ample access to wiring compartment and simple set point adjustment using reference dial or scale, and calibrated gauge
  • Application versatility achieved through a variety of ranges, microswitches, sensors and process connections
  • Protect piping and vessels with heat trace/freeze protection temperature models
