UE Controls J6 Series Pressure Switches Model 218-230

https://www.doger.com/web/image/product.template/10343/image_1920?unique=84132ba

The J6 is a reliable, sensitive pressure switch, originally designed for instrument air applications in process plants.

  • Pressure parameters .

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.

Specifications for UE Controls J6 Series Pressure Switches Model 218-230

Pressure parameters . 218 -Set Point Range: 30 ”Hg Vac to 0 psi /Deadband: 1 to 2 ”Hg /Over Range Pressure: 0 psi / Proof pressure: 30 psi or 222 -Set Point Range: 0 to 20 psi /Deadband: 0.5 to 1 psi /Over Range Pressure: 20 psi / Proof pressure: 30 psi or 224 -Set Point Range: 0 to 30 psi /Deadband: 0.5 to 1 psi /Over Range Pressure: 30 psi / Proof pressure: 45 psi or 226 -Set Point Range: 0 to 50 psi /Deadband: 0.7 to 1.3 psi /Over Range Pressure: 50 psi / Proof pressure: 75 psi or 230 -Set Point Range: 0 to 100 psi /Deadband: 1 to 2 psi /Over Range Pressure: 100 psi / Proof pressure: 110 psi
UEONLINE J6 Series Installation and Maintenance Manual.pdf
Download
UEONLINE J6 Series.pdf
Download
  • UL listed and cUL certified
  • Optional ATEX or GOST intrinsic safety compliance
  • Designed to meet Enclosure Type 4X
  • SPDT switch output
  • Adjustable deadband option for precise on-off control
  • Brass or welded stainless steel bellows sensors
  • External manual reset option

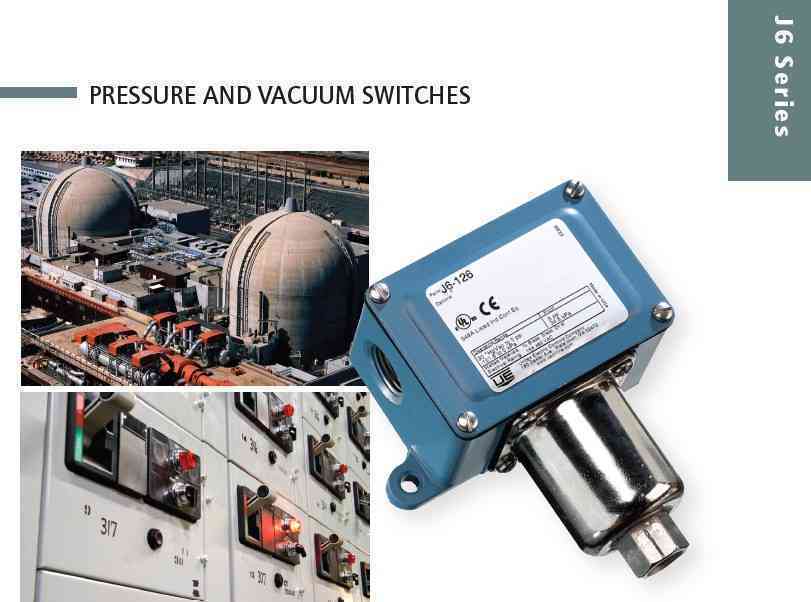

Product Image
UE Controls J6 Series Pressure Switches Model 218-230
