100 Series Pressure Switch H100 models (up to 100 psi)

https://www.doger.com/web/image/product.template/10725/image_1920?unique=5bea737

The 100 Series is simple to install and operate for alarm, safety and emergency shutdown applications where preserving process uptime, and protecting personnel and equipment are paramount.

Type H100 - One SPDT output; epoxy coated enclosure; internal adjustment with “High-Low” reference scale

Note:
You can view the optional products available by clicking ADD TO CAR.

  • Pressure parameters .

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

A rugged switch, the 100 Series is ideal for both heavy industry and the OEM, and carries global agency certification. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns.
Typical applications that utilize the 100 Series include controlling rotating equipment – pumps, turbines, and compressors, heat tracing, fire suppression systems, and fuel/gas trains.

Parameters available in the datasheet of the documents section

Specifications for 100 Series Pressure Switch H100 models (up to 100 psi)

Pressure parameters . 183 - Set Point Range: 1 to 20 psi /Deadband: 0.3 to 2.5 psi /Over Range Pressure : 500 psi or 483 - Set Point Range: 1 to 20 psi /Deadband: 0.3 to 2.5 psi /Over Range Pressure : 500 psi or 171 - Set Point Range: 1 to 20 psi /Deadband. 0.1 to 1 psi /Over Range Pressure : 500 psi or 701 - Set Point Range: 1.5 to 30 psi /Deadband: 1 to 2 psi /Over Range Pressure : 500 psi or 15731 - Set Point Range: 3 to 30 psi /Deadband: 1 to 2 psi /Over Range Pressure : 500 psi or 190 - Set Point Range: 1.5 to 30 psi /Deadband: 1 to 2 psi /Over Range Pressure : 500 psi or 490 - Set Point Range: 5 to 30 psi /Deadband: 1 to 3 psi /Over Range Pressure : 1500 psi or 565 - Set Point Range: 5 to 30 psi /Deadband: 1 to 5 psi /Over Range Pressure : 1000 psi or 184 - Set Point Range: 2 to 50 psi /Deadband: 0.3 to 3 psi /Over Range Pressure : 500 psi or 484 - Set Point Range: 2 to 50 psi /Deadband: 0.3 to 3 psi /Over Range Pressure : 500 psi or 172 - Set Point Range: 2 to 50 psi /Deadband: 0.1 to 1.5 psi /Over Range Pressure : 500 psi or 702 - Set Point Range: 3 to 100 psi /Deadband: 1 to 4 psi /Over Range Pressure : 500 psi or 15732 - Set Point Range: 5 to 100 psi /Deadband: 3 to 9 psi /Over Range Pressure : 500 psi or 185 - Set Point Range: 4 to 100 psi /Deadband: 0.3 to 2.5 psi /Over Range Pressure : 500 psi or 485 - Set Point Range: 4 to 100 psi /Deadband: 0.3 to 2.5 psi /Over Range Pressure : 500 psi or 191 - Set Point Range: 10 to 100 psi /Deadband: 1 to 8 psi /Over Range Pressure : 1500 psi or 491 - Set Point Range: 10 to 100 psi /Deadband: 1 to 8 psi /Over Range Pressure : 1500 psi or 173 - Set Point Range: 4 to 100 psi /Deadband: 0.1 to 2.5 psi /Over Range Pressure : 500 psi or 566 - Set Point Range: 10 to 100 psi /Deadband: 1 to 12 psi /Over Range Pressure : 1000 psi
UEONLINE 100 Series Datasheet.pdf
Download
  • SIL 2 certified (SIL 3 capable) switch providing reliable local switching of final elements in safety instrumented systems (SIS)
  • Quick and easy installation with ample access to wiring compartment and simple set point adjustment using reference dial or scale, and calibrated gauge
  • Application versatility achieved through a variety of ranges, microswitches, sensors and process connections
  • Protect piping and vessels with heat trace/freeze protection temperature models

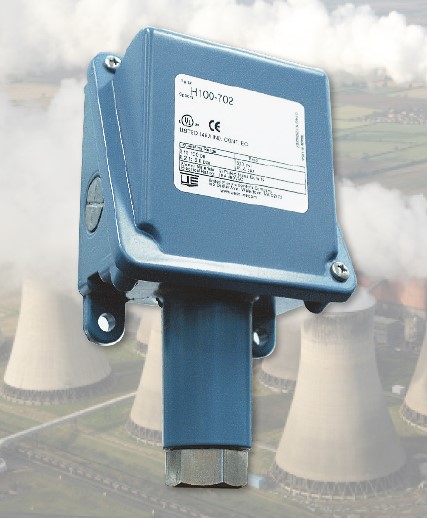

Product Image
